Cellular

DIN RANGER

LTE-M/NB-IoT Cellular Hub with MQTT/Sparkplug

The DIN RANGER is part of SignalFire’s sensor-to-cloud family of cellular transmitters. Its primary use is to integrate with Modbus RTU devices offering bi-directional connectivity over cell networks (LTE-M or NB-IoT). Modbus registers are converted into MQTT/SparkPlug messages allowing for plug-and-play use with the SignalFire Cloud web application or other hosts such as Inductive Automation Ignition, Wonderware, Microsoft Azure, Cygnet, OSI Soft PI, etc. The DIN form factor makes it convenient to be fitted inside of a panel and requires less than 2.5mA of external DC power. In addition to the RS485 Modbus port, the DIN RANGER also offers 3 digital inputs (dry contact or pulse measuring), 3 analog inputs and 1 relay output.

Technical Specifications

Operating Temp:

-40 to +185°F (-40°C to 85°C)

Humidity:

0% – 95% non-condensing

Power Requirements:

  • 8-28 VDC

Average Power Consumption:

  • 2.5mA average @ 12Vdc plus sensor current (250mA peak)
  • 2mA @ 24Vdc plus sensor current (250mA peak)

Data Interface:

  • RS-485 Modbus RTU
  • 32 registers or 96 registers assignable across 8 devices
  • Micro USB for local configuration
  • All readings are automatically converted to MQTT/SparkPlug

Cellular Specification:

  • LTE Band support: Cat-M1 / NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B20, B25, B26, B28, B66
  • Supports 4FF SIM type
  • Data secured by TLS
  • PTCRB certified

Antenna Type:

Directional or Omnidirectional (SMA Connector)

Cellular Radio Power:

23dBm

Configuration:

  • Local with micro-USB cable using RANGER Toolkit software
  • Remote over-the-air using SignalFire Cloud or MQTT/SparkPlug-ready host

Estimated Monthly Data Usage:

  • 32 Registers + I/O
  • 1 Min = 38Mb
  • Min = 7.6Mb
  • 15 Min = 2.6Mb
  • 60 Min = 0.7Mb

Enclosure:

  • Powder coated metal
  • Metal DIN connector

Electrical Connections:

Pluggable terminal block, 16-30 AWG screwed terminals

Safety Rating:

Class 1 Division 2 Certified, Groups A, B,C, D. Temperature Code T5. Certified to CSA C22.2 No. 213:2017, Conforms to UL 121201:2017, CE Approved

Internal Diagnostics:

Line voltage, signal strength, error conditions, internal event logging, Modbus communications

Inputs & Outputs:

  • Three (3) digital inputs report state, total counts, frequency (2kHz max), volume total with K factor
  • One (1) latching relay output (2A @30Vdc, 0.3A @ 110Vac)
  • Three Analog inputs. One 4-20mA, two selectable 4-20mA or 1-5V inputs. Passive or active. 13Vdc or 18Vdc available for loop-powered transmitters

Features

01
Modbus interface RS485 RTU
02
Auto-detection of cellular network (LTE-M or NB-IoT)
03

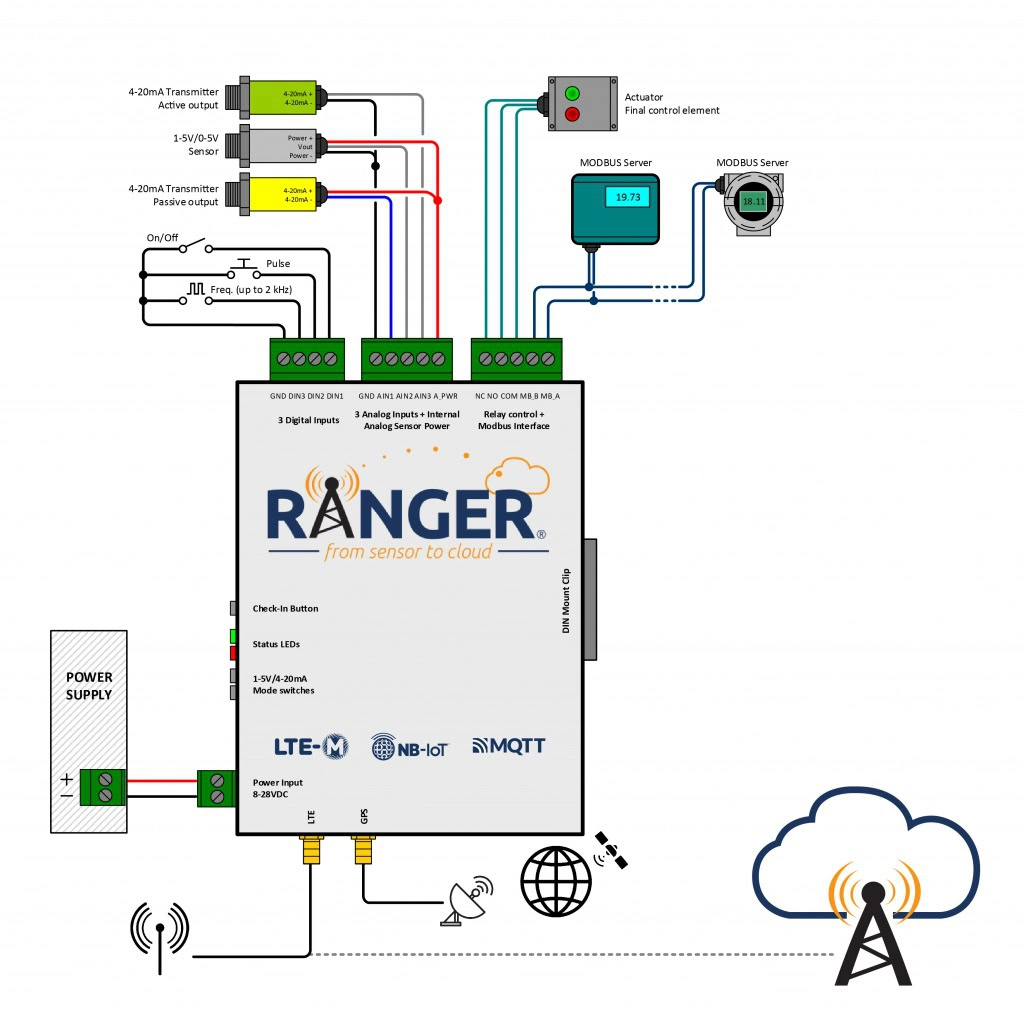

Wired inputs/outputs: 3DI, 3AI, 1DO
04
Plug-And-Play with SignalFire Cloud
05
MQTT/SparkPlug communication
06
Various options for high-gain cellular antenna
07
Class I Division 2 Certified for hazardous locations
08
GPS Radio for location management
09
Configurable MQTT broker with fall back
10
Monitoring & alarming services using SignalFire Cloud
11
FirstNet Capable

The DIN RANGER is part of SignalFire’s sensor-to-cloud family of cellular transmitters.

Its primary use is to integrate with Modbus RTU devices offering bi-directional connectivity over cell networks (LTE-M or NB-IoT). Modbus registers are converted into MQTT/SparkPlug messages allowing for plug-and-play use with the SignalFire Cloud web application or other hosts such as Inductive Automation Ignition, Wonderware, Microsoft Azure, Cygnet, OSI Soft PI, etc. The DIN form factor makes it convenient to be fitted inside of a panel and requires less than 2.5mA of external DC power. In addition to the RS485 Modbus port, the DIN RANGER also offers 3 digital inputs (dry contact or pulse measuring), 3 analog inputs and 1 relay output.

TitleCategoriesProductsFile TypeLanguagesLinkhf:doc_categorieshf:doc_tagshf:tax:language
Antenna, LTE, Panel Mount KitAccessoriesDIN RANGERpdfaccessoriesdin-ranger
Cloud API ManualManualCloud, DIN RANGER, LTE-M1 Cellular, Pressure RANGER, RANGER, RANGER Wall Mount, RANGER900pdfmanualcloud din-ranger lte-m1-cellular pressure-ranger ranger ranger-wall-mount ranger900
Configure Seametrics Modbus with RANGER ModbusManual900 MHz, DIN RANGER, RANGER, RANGER Wall Mountpdfmanual900-mhz din-ranger ranger ranger-wall-mounten
DIN RANGER 3D Model3D Models, DrawingDIN RANGERzip3d-models drawingdin-ranger
DIN RANGER DatasheetDatasheetDIN RANGER, LTE-M1 Cellularpdfdatasheetdin-ranger lte-m1-cellular

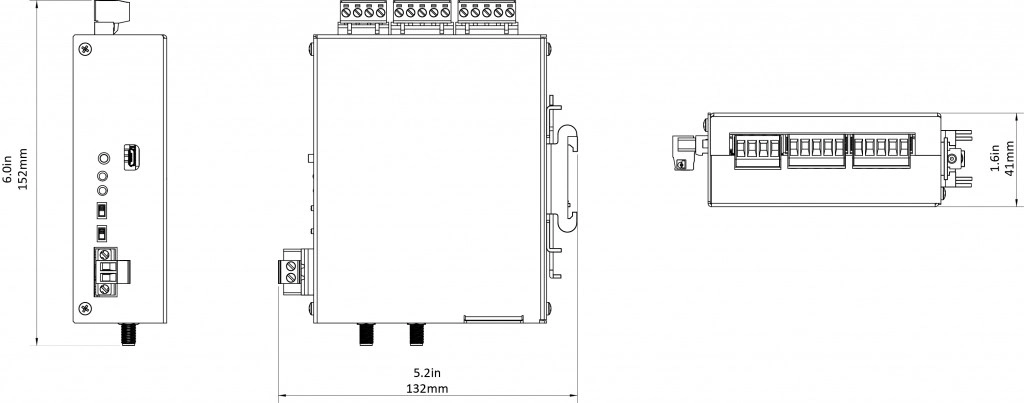

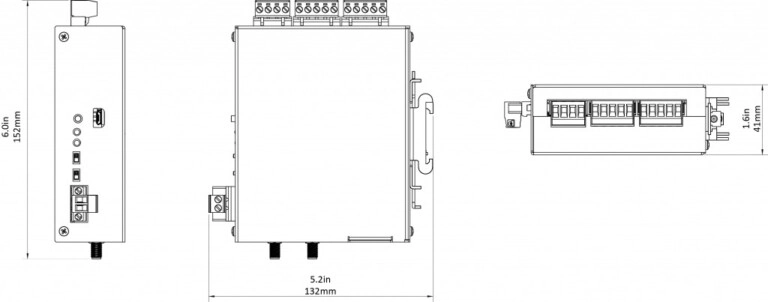

DIN RANGER Dimensional DrawingDrawingDIN RANGER, LTE-M1 Cellularpdfdrawingdin-ranger lte-m1-cellular
DIN RANGER ManualManualDIN RANGER, LTE-M1 Cellularpdfmanualdin-ranger lte-m1-cellular
RANGER Connectivity OptionsDatasheetCloud, DIN RANGER, Pressure RANGER, RANGER, RANGER Wall Mount, RANGER900pdfdatasheetcloud din-ranger pressure-ranger ranger ranger-wall-mount ranger900
RANGER Tag Guide v0.1.23-DINRANGER Tag Guide – ArchiveDIN RANGER, LTE-M1 Cellular, RANGER Wall Mountxlsxranger-tag-guide-archivedin-ranger lte-m1-cellular ranger-wall-mount
RANGER Tag Guide v0.1.24-DINRANGER Tag Guide – ArchiveDIN RANGER, LTE-M1 Cellular, RANGER Wall Mountxlsxranger-tag-guide-archivedin-ranger lte-m1-cellular ranger-wall-mount
RANGER Tag Guide v0.1.26-DINRANGER Tag Guide – ArchiveDIN RANGER, LTE-M1 Cellular, RANGER Wall Mountxlsxranger-tag-guide-archivedin-ranger lte-m1-cellular ranger-wall-mount
RANGER Tag Guide v0.1.31-DINRANGER Tag Guide – ArchiveDIN RANGER, LTE-M1 Cellular, RANGERxlsxranger-tag-guide-archivedin-ranger lte-m1-cellular ranger
Ranger Tag Guide v0.1.32-DINRANGER Tag Guide – ArchiveDIN RANGER, LTE-M1 Cellular, RANGERxlsxranger-tag-guide-archivedin-ranger lte-m1-cellular ranger
Ranger Tag Guide v0.1.33-DINRANGER Tag Guide – ArchiveDIN RANGER, LTE-M1 Cellular, RANGERxlsxranger-tag-guide-archivedin-ranger lte-m1-cellular rangeren
RANGER Tag Guide v0.1.37-DINRANGER Tag Guide – ArchiveDIN RANGER, LTE-M1 Cellular, RANGERxlsxranger-tag-guide-archivedin-ranger lte-m1-cellular rangeren
RANGER Tag Guide v0.1.38-DINRANGER Tag Guide – CurrentDIN RANGER, LTE-M1 Cellular, Modbusxlsxranger-tag-guide-currentdin-ranger lte-m1-cellular modbusen
